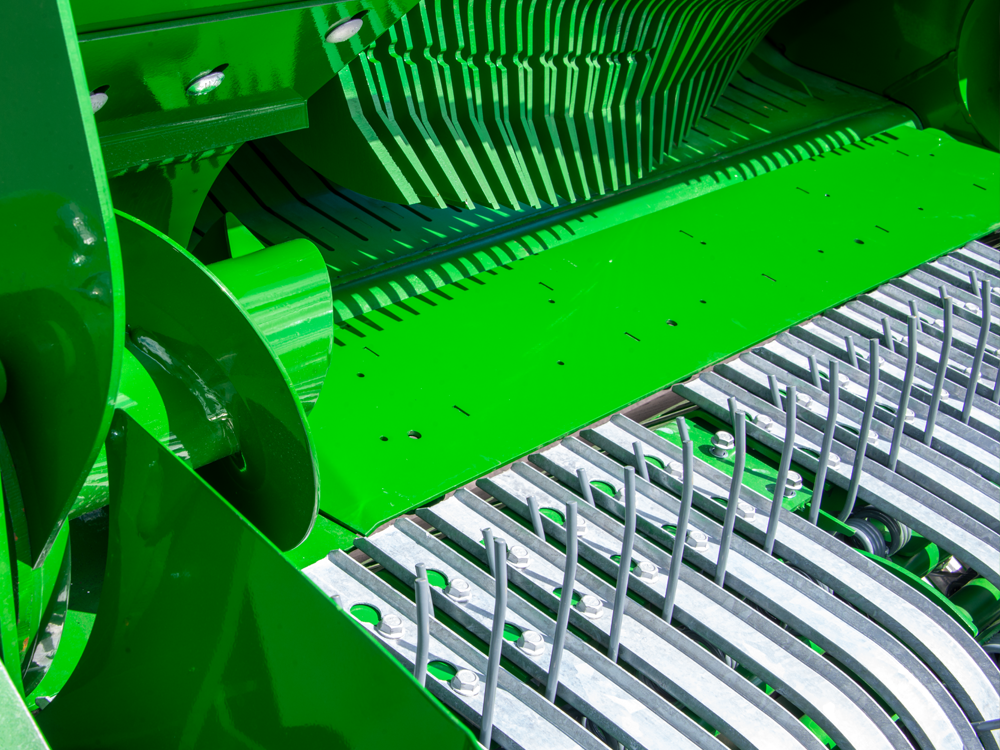

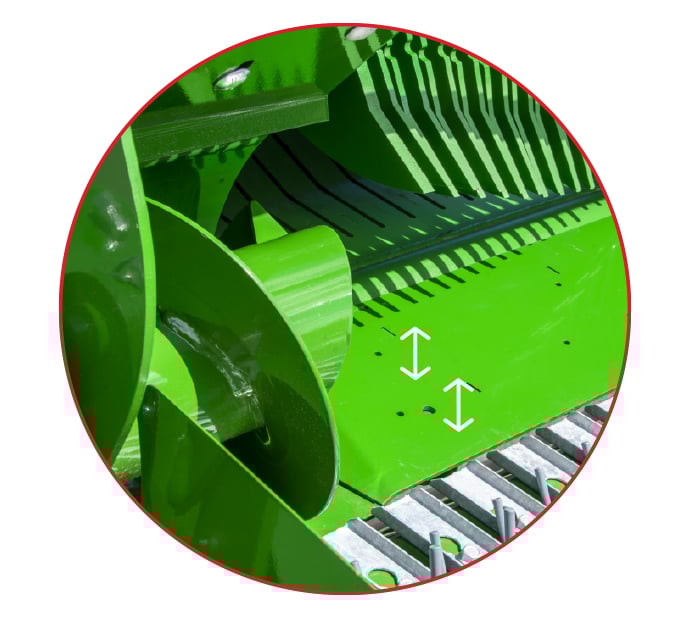

• The new tapered feed channel encourages the crop to flow from the pick-up and then move towards the rotor and into the bale chamber, maximising throughput.

• McHale have also moved the lateral feed augers forward and their ends are angled towards the rotor for improved crop flow.

• These changes combined offer a massive reduction in the potential for blockages to occur and in turn, increase output for the operator.

• To reduce maintenance, all Profi-Flo pick-ups are fitted with a heavier driveline which reduces chain load and increases chain life.

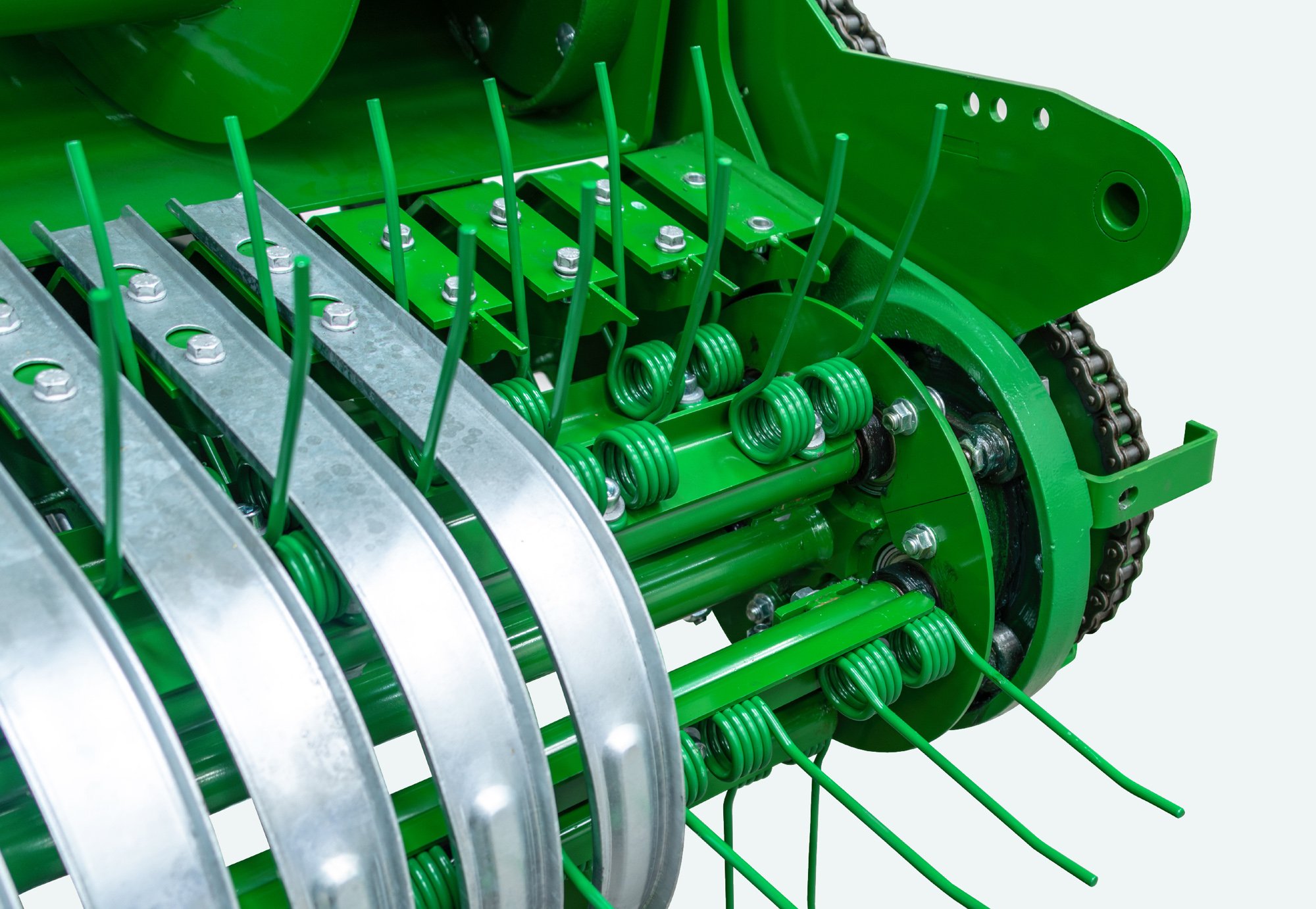

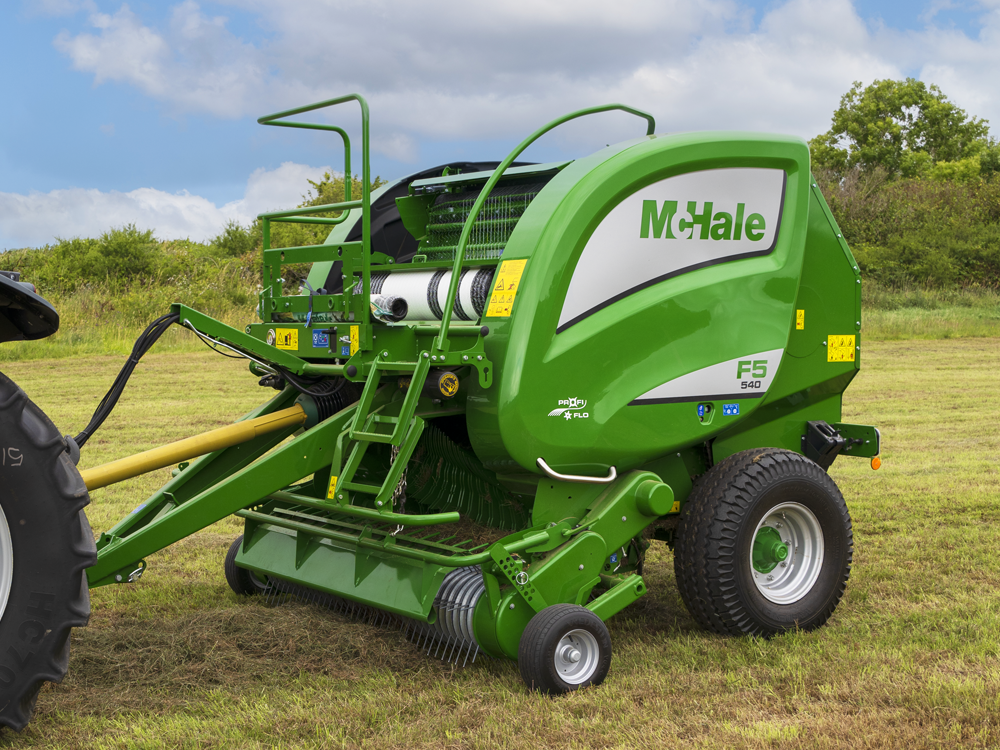

Cam Pick-Up

As standard, a cam operated 2.1m high-intake galvanised pick-up ensures excellent ground cleaning in all types of crop. The cam pick-up runs on a cam track that is fitted with double raced cam bearings to stand up to the most testing of conditions.

All cam pick-ups across the McHale Fixed Chamber Baler Range are fitted with 5 tine bars for excellent ground cleaning and delivery of crop to the bale chamber. A side inspection port allows the operator to quickly check and change the cam bearings if needed.

All McHale cam pick-ups have heavy-duty tine bar supports to ensure long service life. McHale have also developed a pick-up tine designed to lift even the shortest of crop

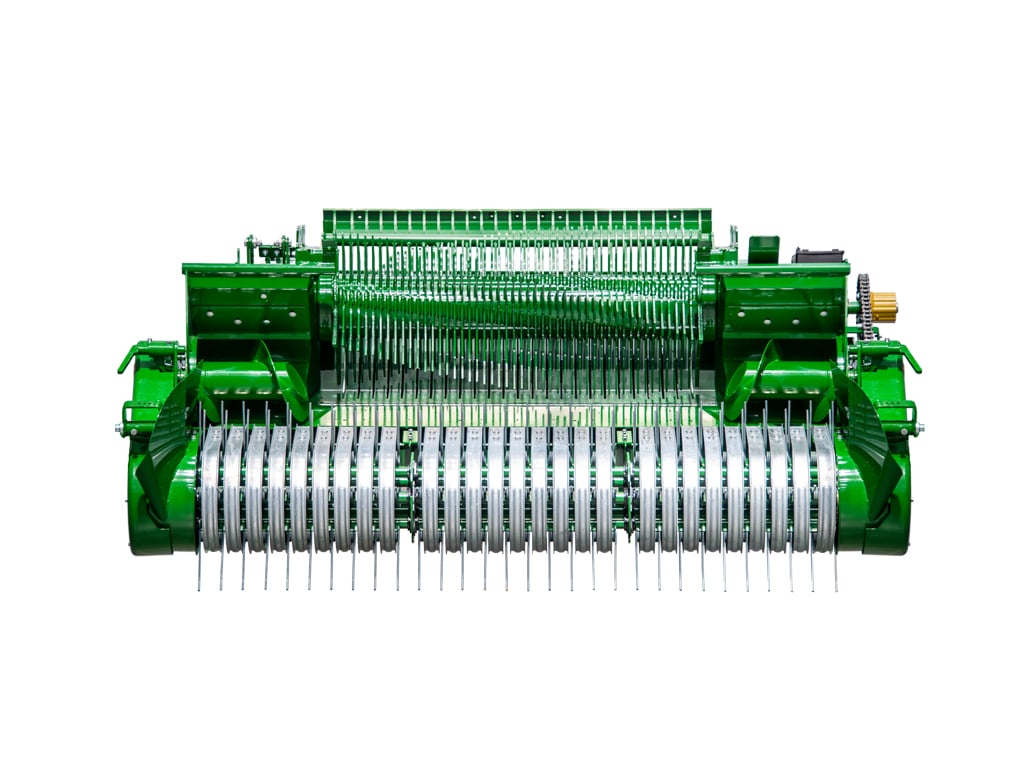

Camless Pick-Up

A 2.1m camless pick-up is available as an option on all machines in the McHale Fixed Chamber Baler Range. Six tine bars are fitted to all McHale camless pick-ups to provide excellent ground cleaning and fast delivery of crop to the bale chamber.

The camless pick-up has been designed to increase output, reduce levels of maintenance and perform better in certain conditions.

All camless pick-ups are fitted with a fully welded tine bar. McHale have also developed a pick-up tine designed to lift even the shortest of crop

Optimal Power Distribution

The rollers in the bale chamber are driven from the left-hand side of the machine and the pick-up and chopper unit are driven from the right-hand side of the machine. This system ensures direct, short transfer paths, leading to optimal power distribution.

1000rpm Gearbox (Optional)

In order to optimise machine performance, a 1000rpm gearbox is available as an optional upgrade on all machines in the McHale fixed chamber baler range. We recommend you speak with your local dealer or distributor regarding which gearbox is best suited to your requirements, based on your working conditions.

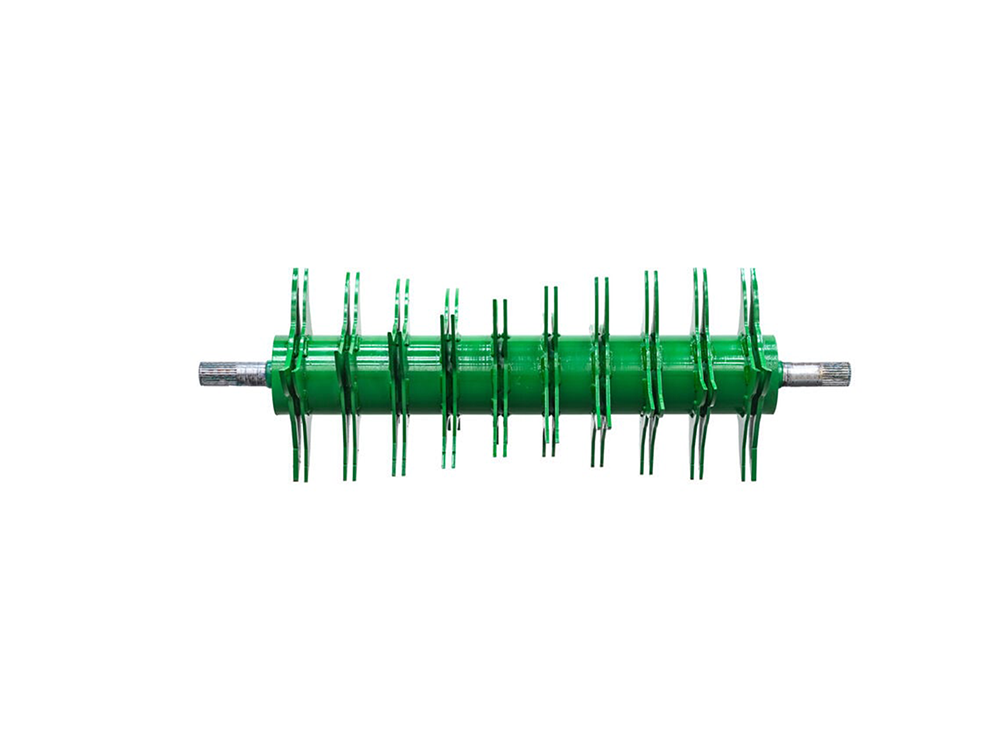

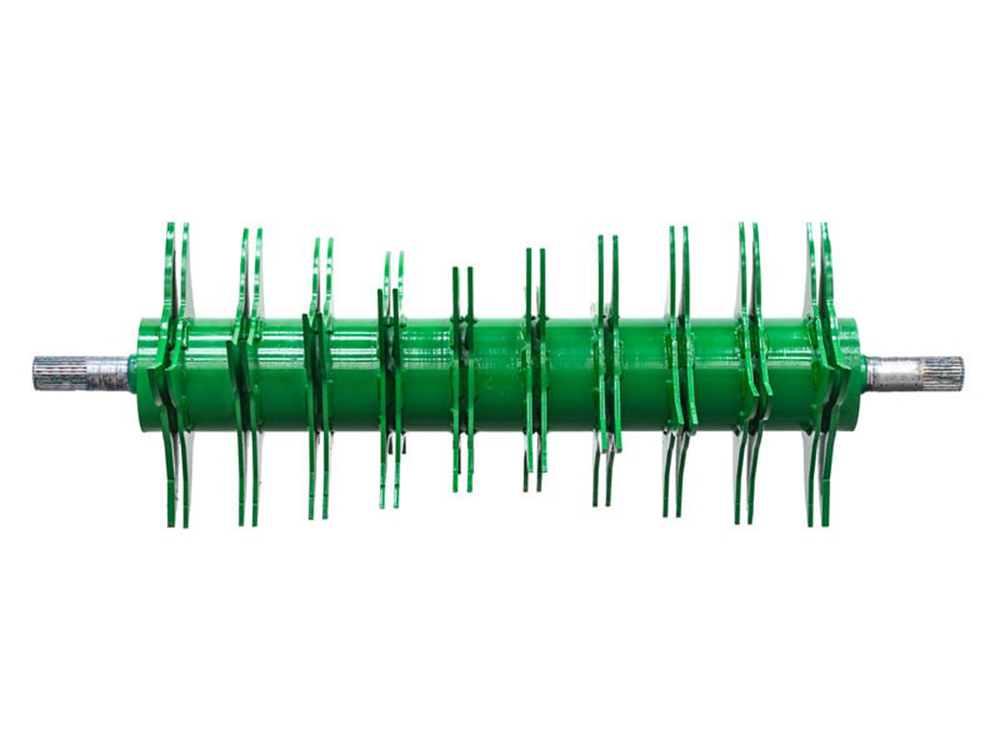

Non Chopper Twin Finger Rotor

1 - Drop the Floor

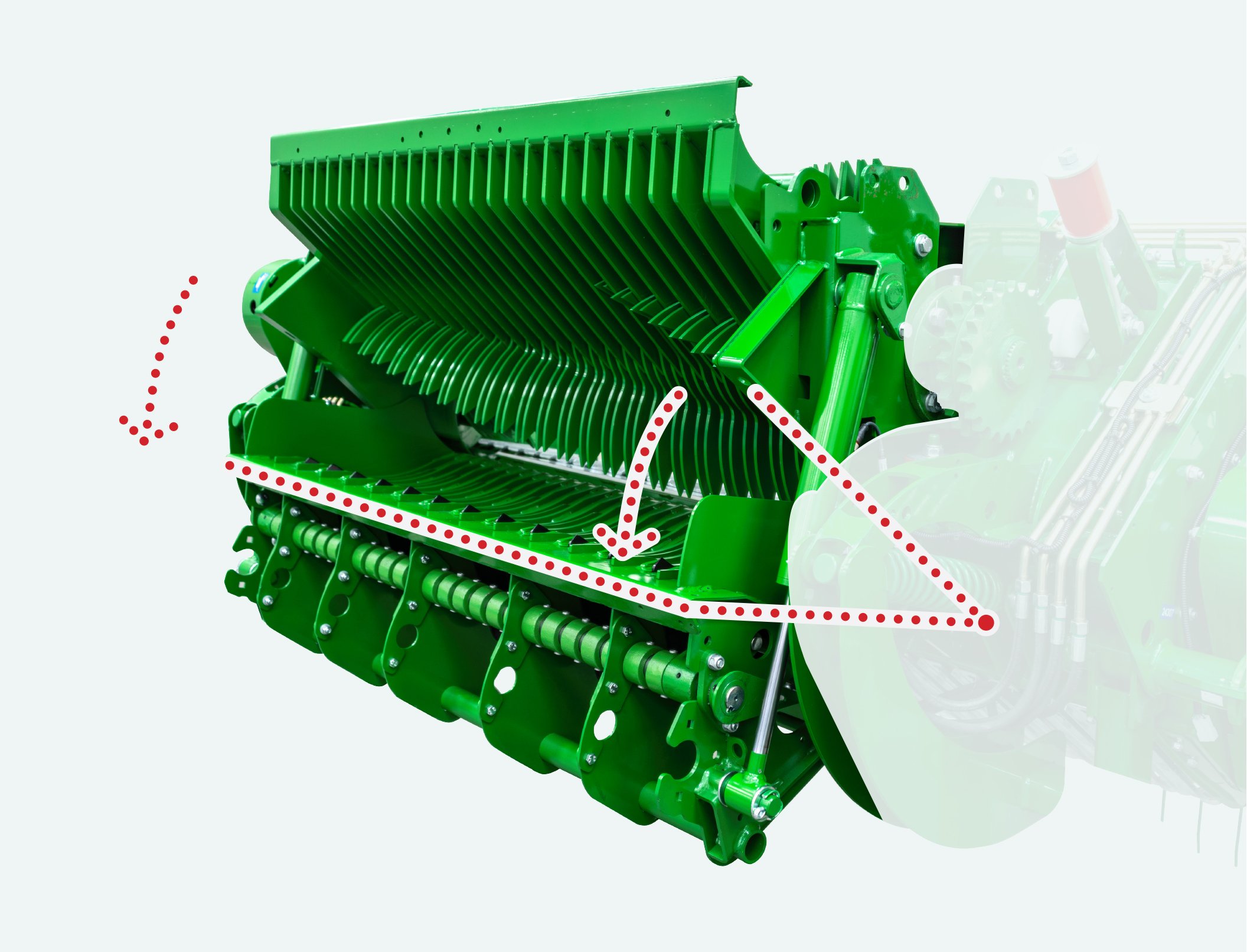

Should a blockage occur, the sound of the slip clutch alerts the operator, who can hydraulically lower the floor from the tractor cab. When operating the drop floor cycle, the knives and the drop floor drop together during the unblocking process, giving even more clearance to allow the blockage to be fed through.

2 - Re-engage the PTO

This widens the feed channel at both the front and rear of the drop floor where the blockage is more likely to occur. By lowering the front and rear of the drop floor, the blockage can be fed through and effectively cleared when the PTO is re-engaged.

3 - Reset the Floor

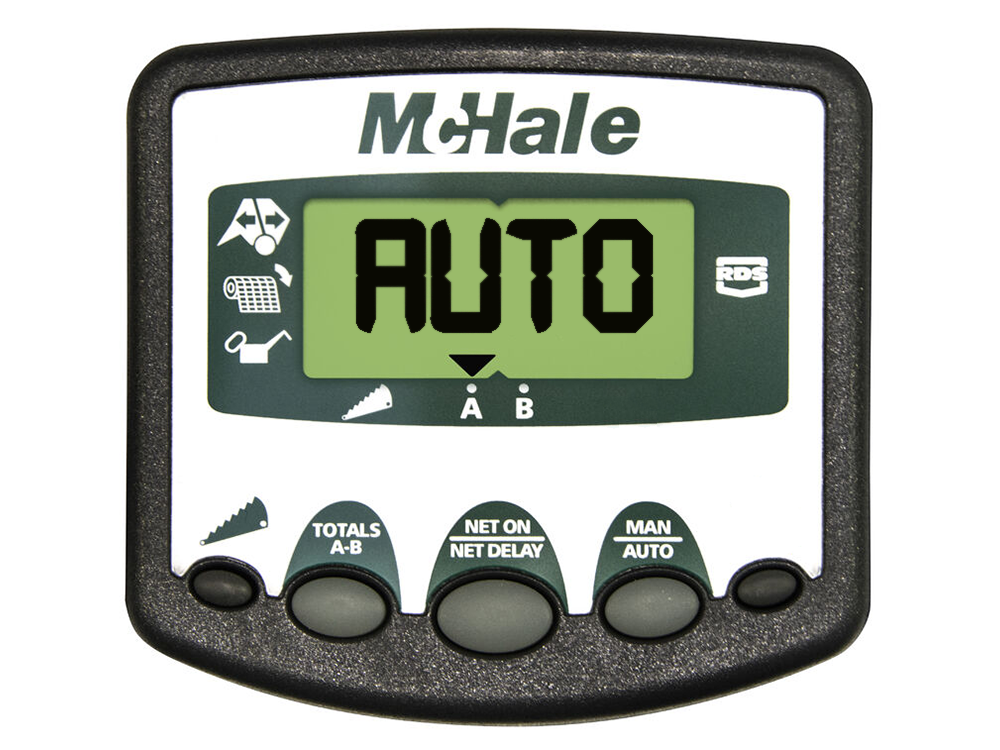

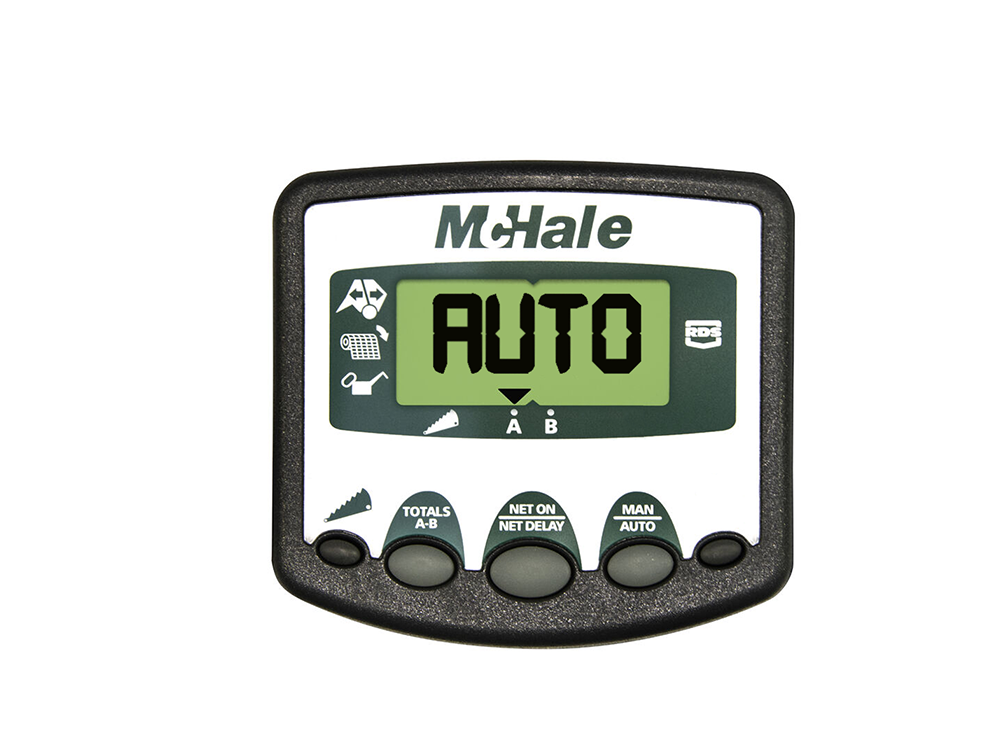

The floor can then be reset to its original position and baling can resume. On the F5-550,F5-560 and F5-560 Plus the drop floor is equipped with a drop floor sensor to ensure the chop quality is consistent by indicating to the operator via the control box if the drop floor is open and the knives are down.

Heavy Duty Chains

High quality heavy-duty chains ensure reliable operation all around the machine. The main drive chain coming off the gearbox is a high tensile, heavy duty 100H endless chain for maximum strength. All other chains on the drive side of the bale chamber are inch and a quarter (20B). The rotor chain is inch duplex (16 B2) and all pick-up chains are three quarter inch (ASA 60H).

New chain tensioners are fitted on all machines in the F5 range to
allow for a spring to be tensioned by simply tightening a bolt at
the end which replaces the need to manually release the spring
and reattach.

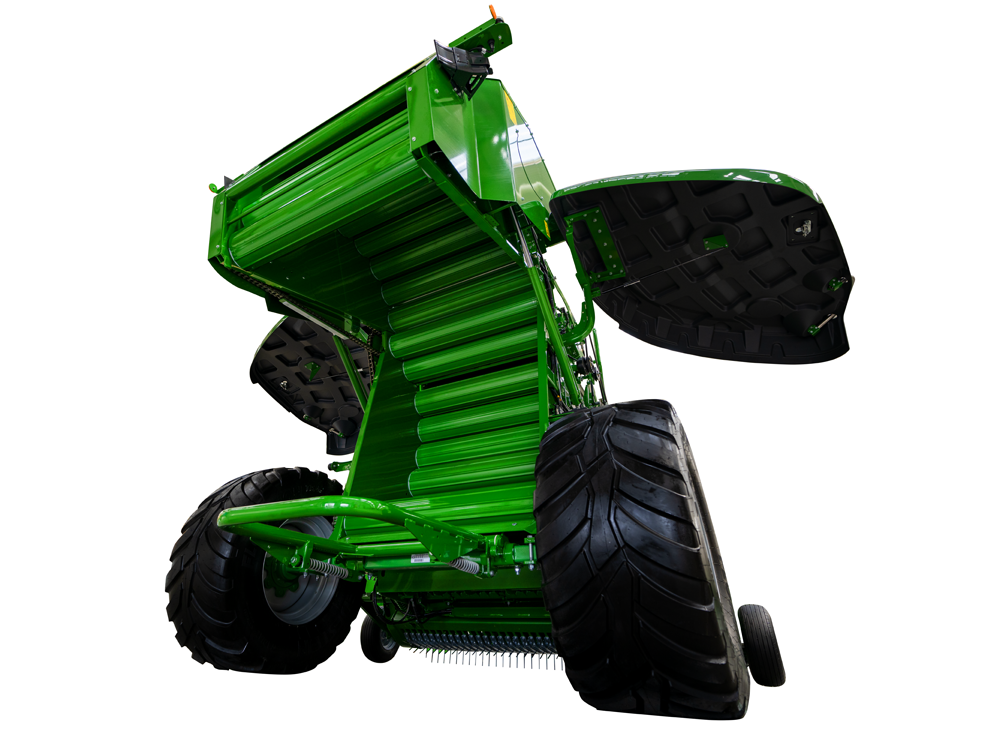

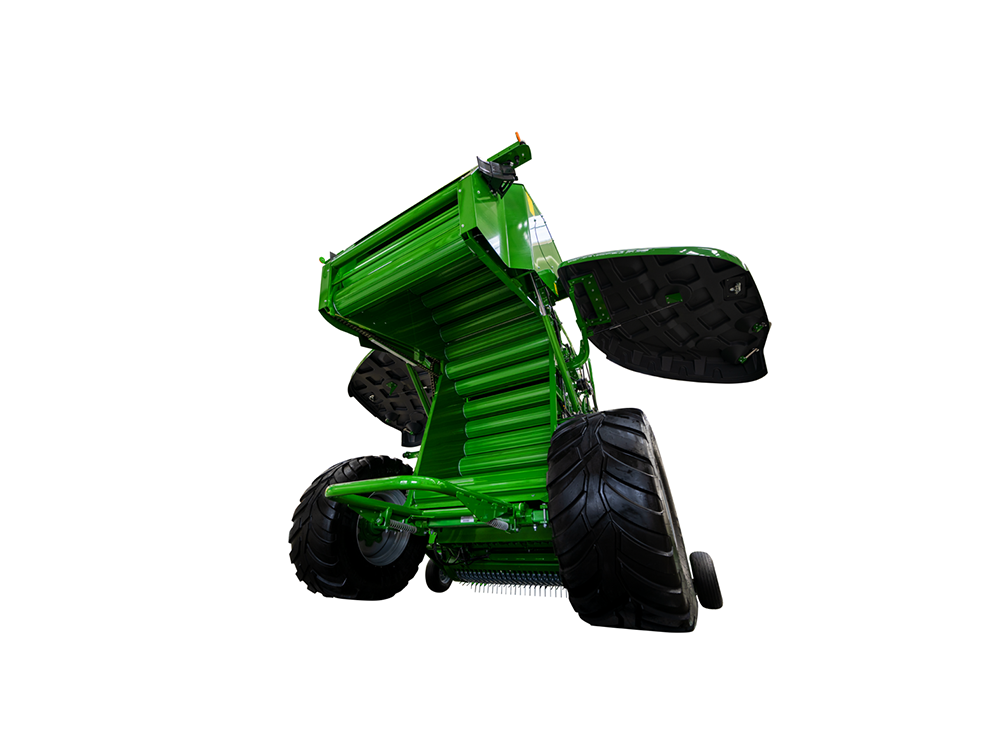

Chamber Bearings

All roller assemblies utilise high quality 50mm bearings on the drive and non-drive side of the bale chamber. On the main load points, heavy duty, double raced 55mm roller bearings are fitted to ensure maximum reliability. This combination provides maximum strength and ensures a long working life.

Bale Density Adjustment

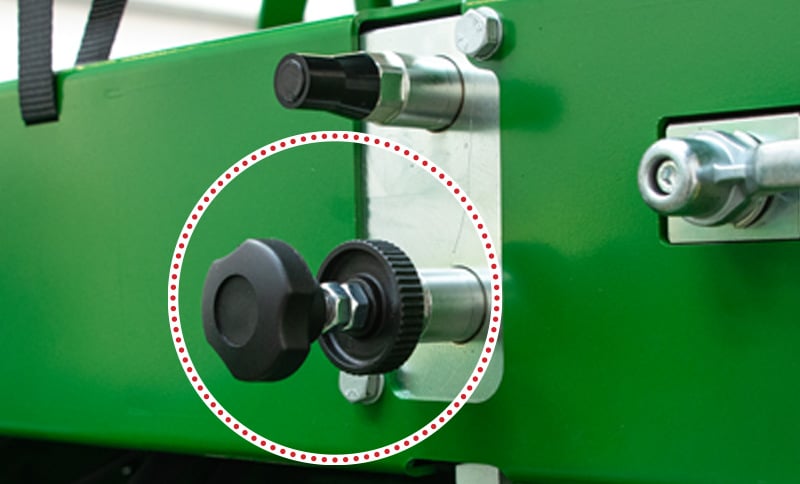

On the F5-540 balers the chamber pre charge pressure can be easily adjusted on the density control valve on the machine platform. By adjusting the handle in a clockwise direction density can be increased, while rotating the handle in the opposite direction reduces density.

Roller Design & Sealing

The roller ends are fitted with high performance self-cleaning seals that have a unique reverse-thread sealing system, which hinders the crop from getting into the bearings. As the roller moves in one direction, the thread on the seal moves in the opposite direction, ensuring that any crop that tries to find its way into the bearing is automatically threaded out. The seals prevent the grease around the bearings from becoming contaminated by crop.

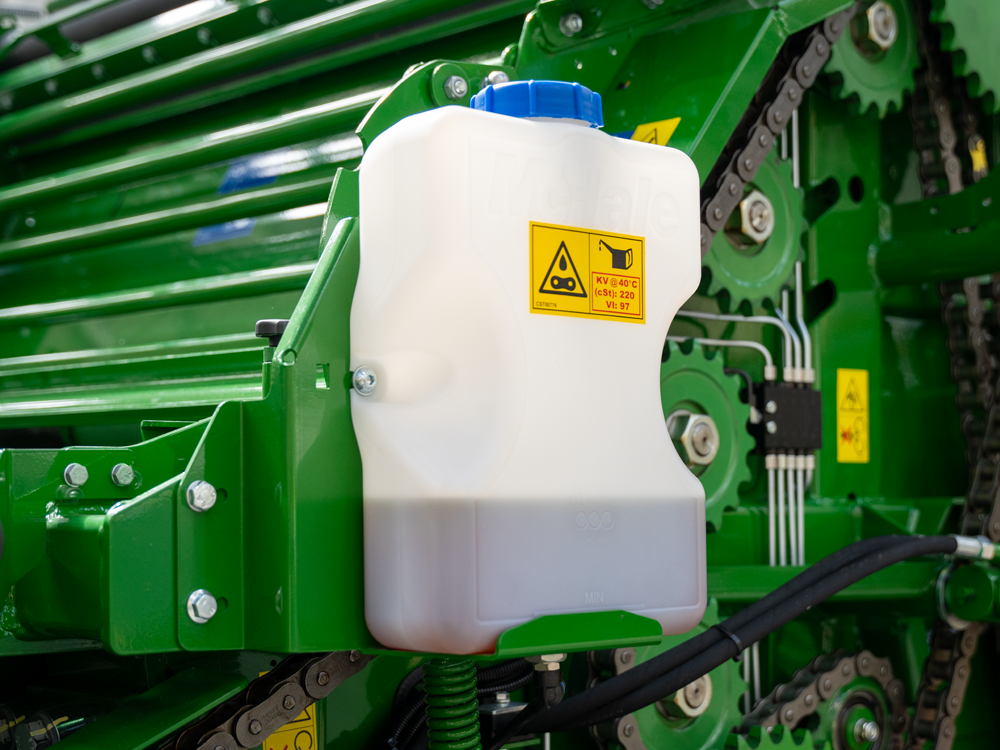

Continuous Oiling System

The continuous oiling system on the machine is driven off the gearbox and delivers oil to the following chains:

• Chamber Drive Side Chains
• Rotor Drive Chain
• Pick-Up – Drive Chains
• Pick-Up – Cam Track
• Pick-Up – Drive Gears

Greasing

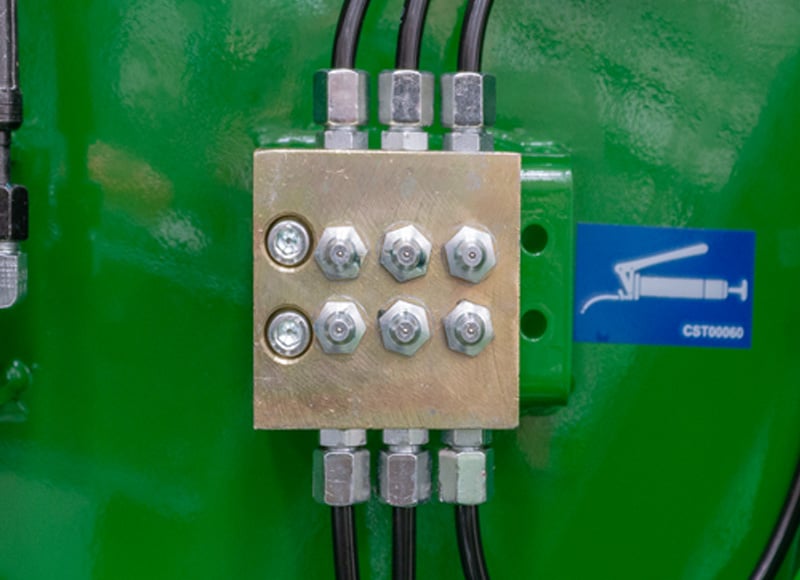

All machines come fitted with a number of manual greasing points which are easily accessible throughout the baler either individually or through a centralised greasing block. The following bearings highlighted below are greased:

• Bale Chamber – Drive Side
• Bale Chamber – Non-Drive Side
• Rotor Bearings – Drive Side
• Rotor Bearings – Non-Drive Side.

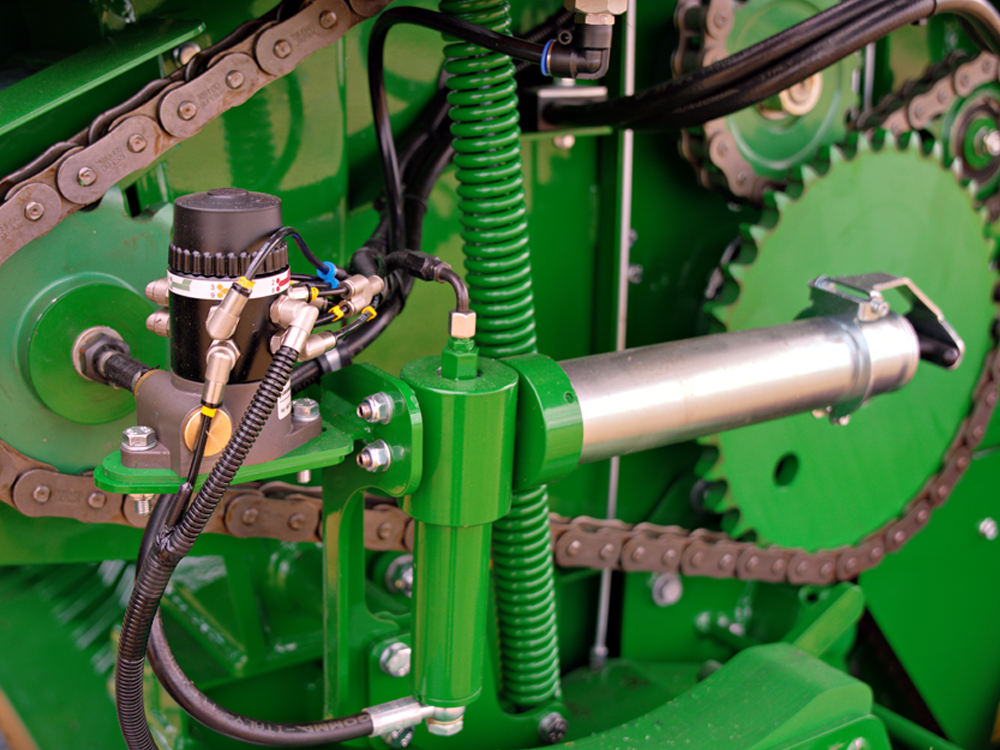

Automatic Greasing

With the exception of the McHale F5-540, all machines in the McHale Fixed Chamber Baler Range are fitted with automatic greasing as standard. A pressurised system delivers a measured amount of grease every time a bale is ejected from the bale chamber. Automatic greasing saves time as it reduces the amount of manual greasing to be done by the operator. A lube alarm sounds after 300 bales to inform the operator to refill the grease cartridge.

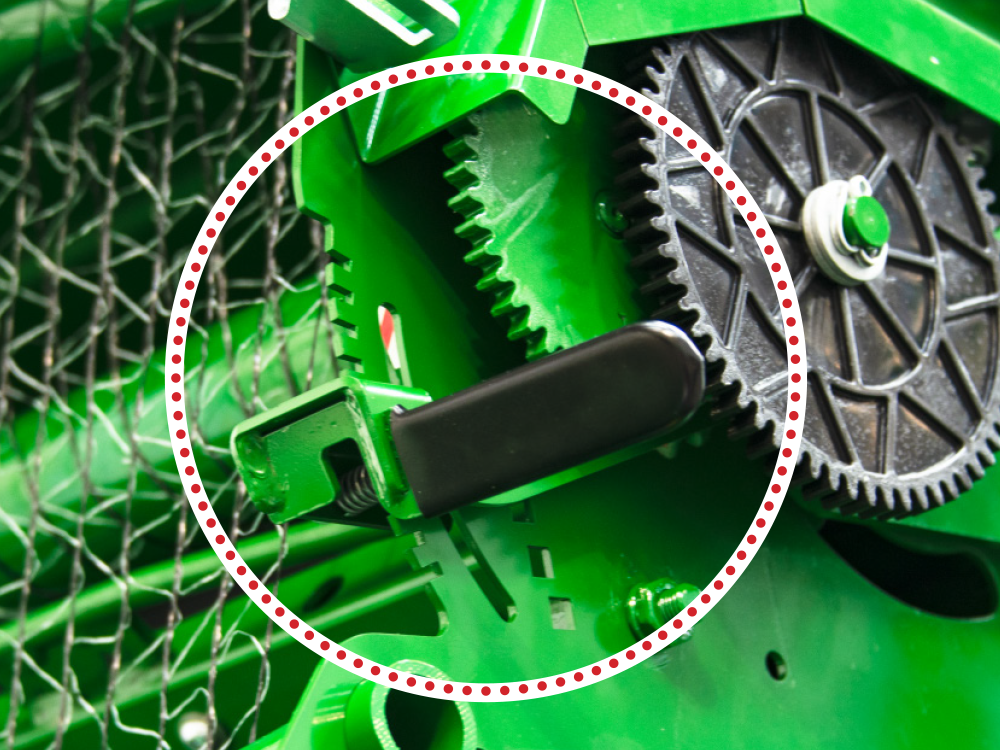

Endless Adjustment

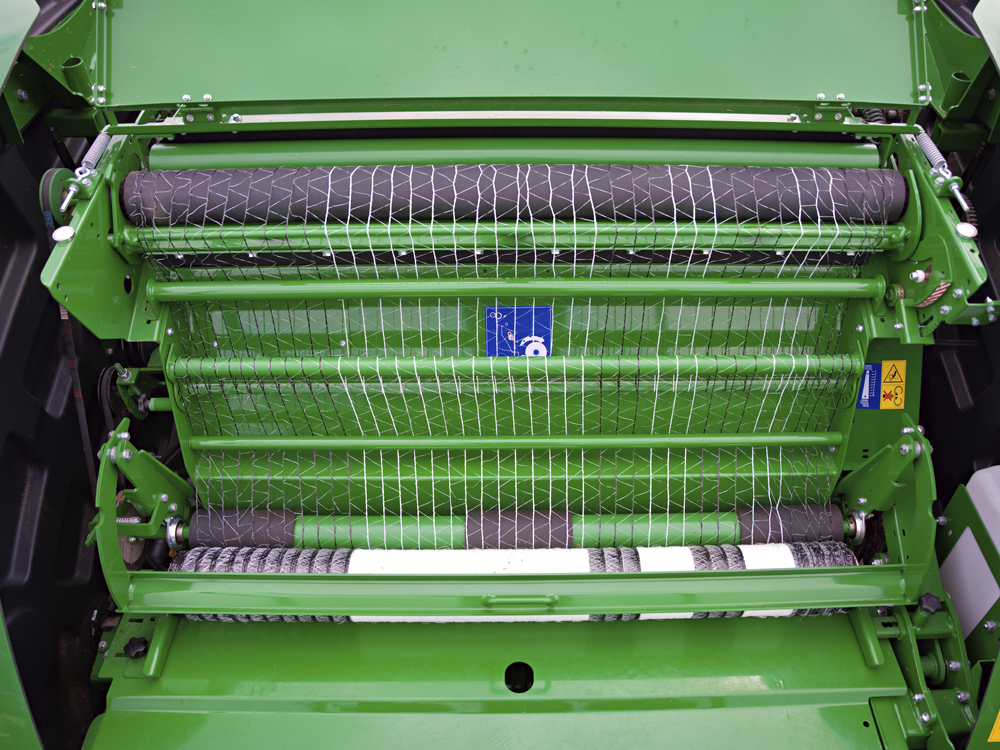

Various adjustment of tension to ensure optimum net/film usage and bale shape

Up to 1300 mm

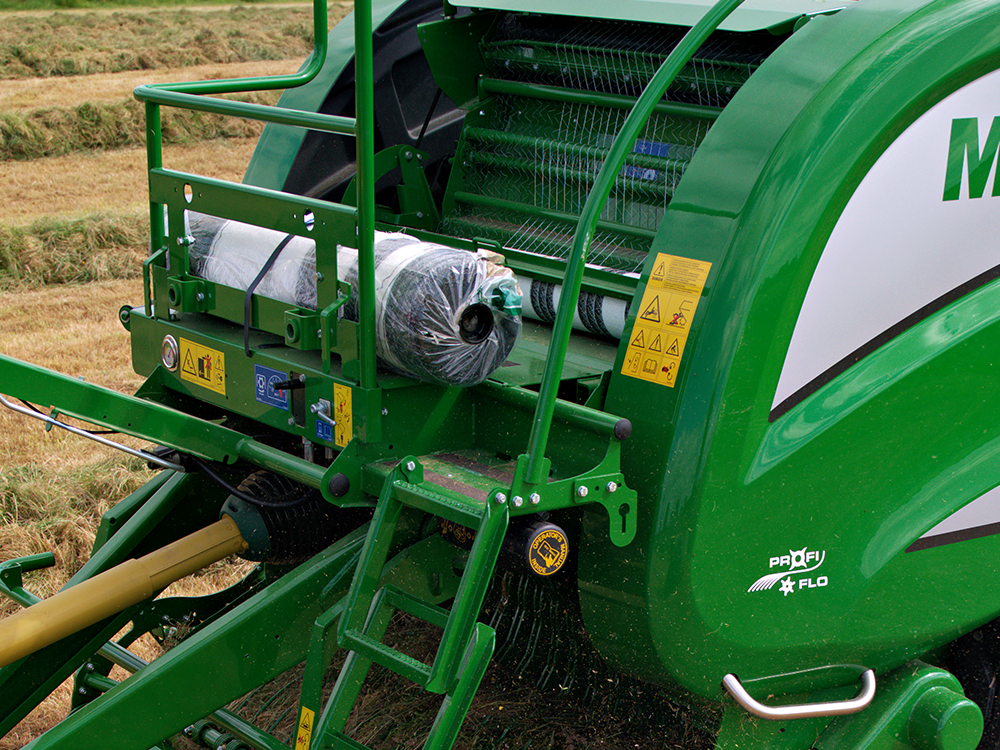

Capacity to take rolls of net wrap up to 1300 mm in width and 4500m in length.

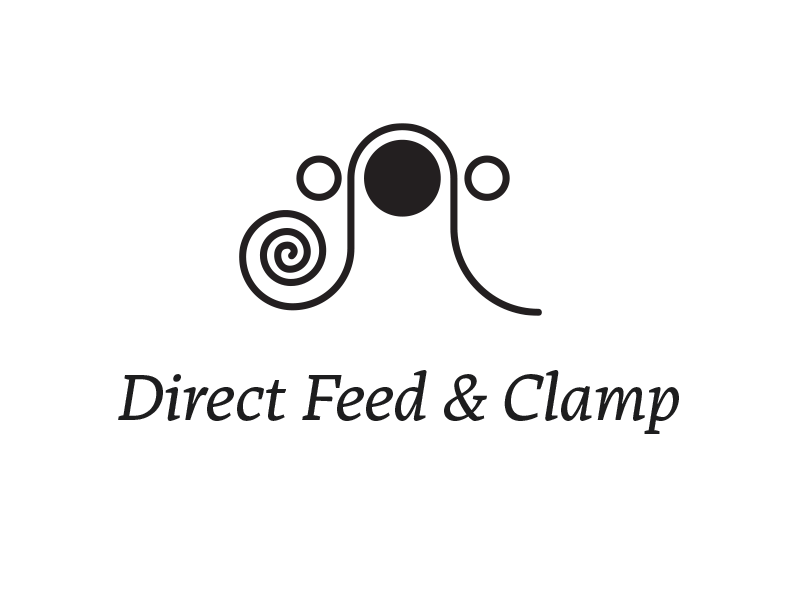

Direct Feed & Clamp

The route in which the net feeds is adjustable and eliminates any slippage when netting.
