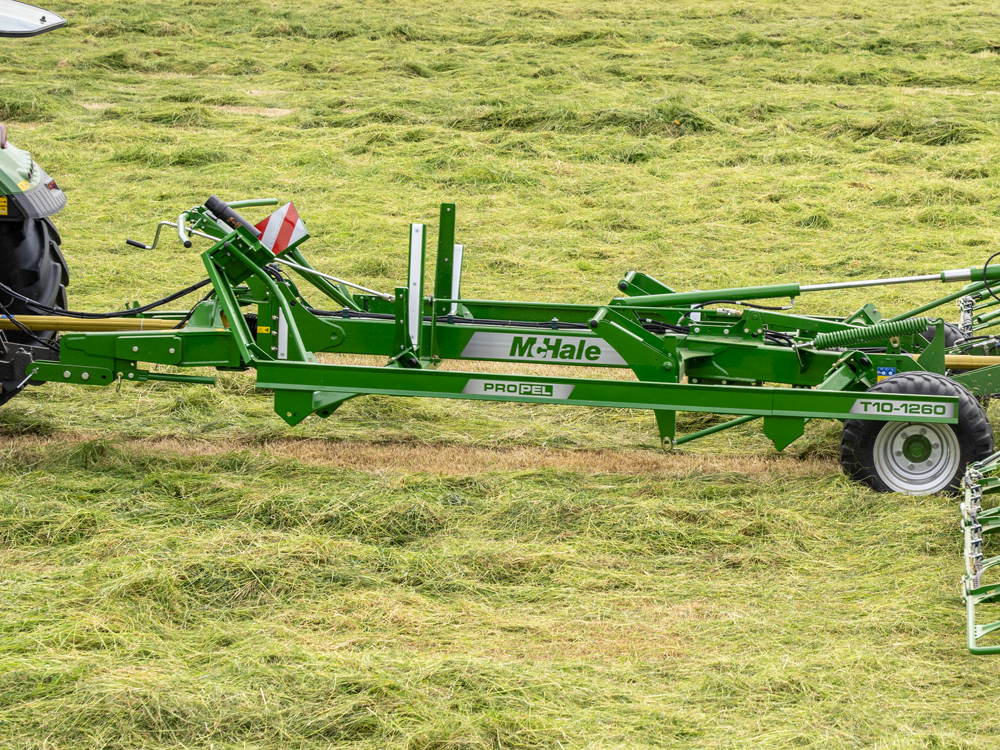

The McHale PROPEL T10-1260 is the largest machine in the range. This trailed tedder is equipped with 10-rotors to provide a working width of 12.6M. This high capacity machine is transported on a carriage frame which links the tedder to the tractor when in operation

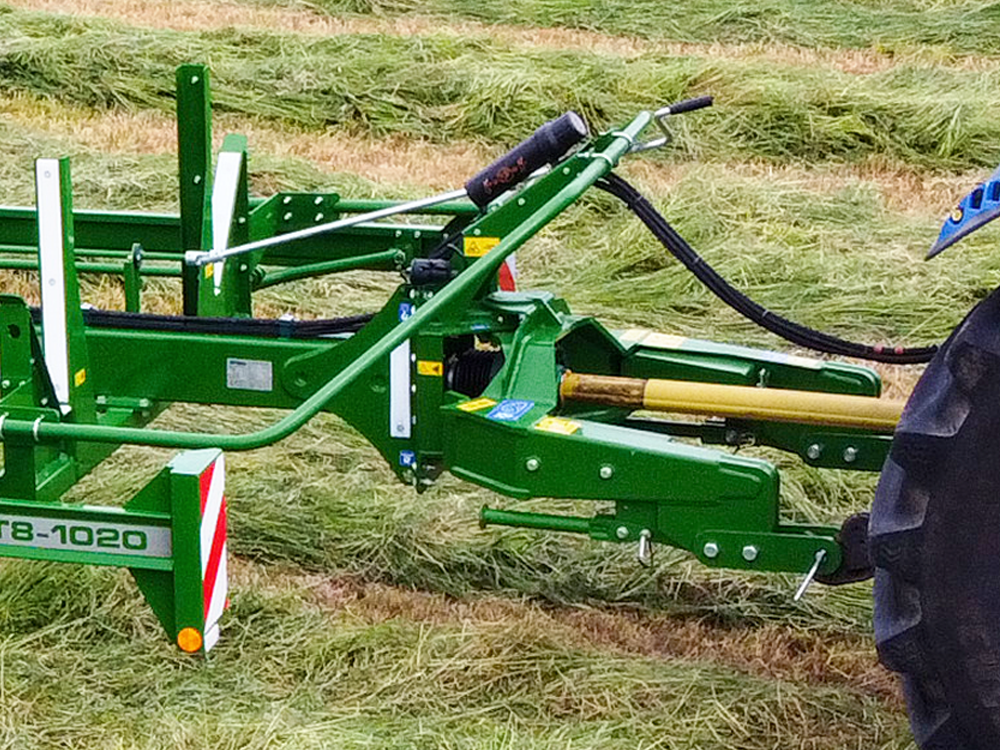

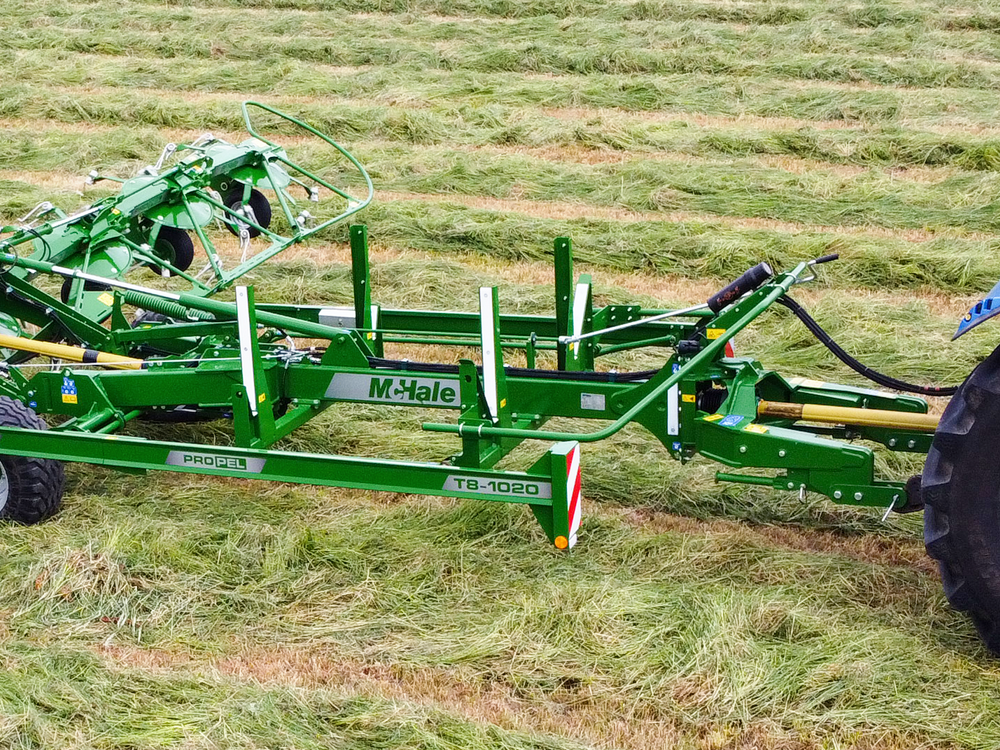

A 2-point linkage pivoting headstock connects the tedder to the tractor while all unfolding, lifting and lowering actions can be carried out using two double acting spools. The machine runs on wide transport tyres which are positioned in front of the rotors and enable them to float along the ground for clean tedding of the crop.
WORKING WIDTH 12.6m(41′ 4″) |
NO. OF ROTORS 10 |
ROTOR DIAMETER 1.58m (62″) |
TINE ARMS PER ROTOR 7 |
POWER REQUIREMENT 50 kW(67 HP) |
ATTACHMENT Lower Linkage(CAT II) |
Transport Length | 5.8 m (19′) |
Transport Width | 2.99 m (9′ 10″) |
Transport Height | 2.6 m (8′ 6″) |
Weight | 3,005 kg (6,625 lbs) |
Minimum Power Requirement | 50 kW (67 HP) |
Attachment | Trailed/ CAT II lower linkage |
Recommended PTO Speed | 580 rpm (SAE 6 spline PTO shaft) |
Lighting | 12 V / 7-pin socket |
Hydraulic Systems | 1x SA, 2x DA hydraulic supply (1 with float) |
Minimum Flow Rate | 20 l/min (4.54 gal/min) @ 180 bar (2,610 psi) |
Number of Rotors | 10 |
Rotor Diameter (including tines) | 1.58 m (5′ 2″) |
Working Width | 12.6 m (41’4″) |
Number of Tine Arms | 7 (per rotor) |
Chassis Tyres (380/55-17) | 2 |
Rotor Tyres (170/60-8) | 10 (1 per rotor) |
Spare Rotor Wheel | Optional |
Headland Management System | Optional |
